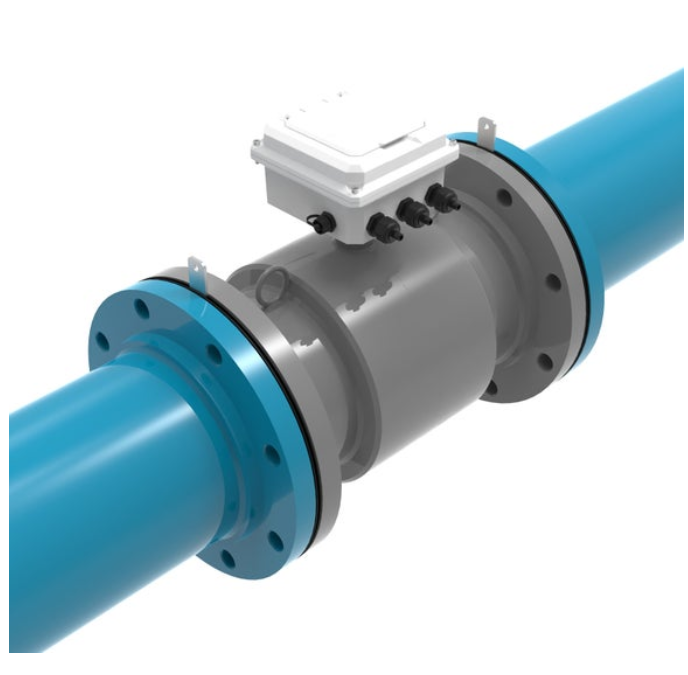

Field Mag 3000 Flow Meter

An advanced, leading edge mag meter – the Field Mag 3000 flow meter sets a new standard for performance, ease-of-use, and value.

The Field Mag 3000 is specifically designed for Water Transfer, Produced Water, and Mining operations where rugged and quick connections are needed with the added benefit of higher temperature ratings and exotic electrode materials in a battery powered meter. Our epoxy liner ensures long life even in slurry applications.

The Field Mag 3000 is a suite of flow measurement products curated to the mining and water transfer industries. Offered with the ever-popular grooved end fittings and welded feet for stability, the Field Mag 3000 eliminates the hassle of traditional full-bore mag meter installation and transportation. Say goodbye to the bulky and heavy flange to grooved end connections and say hello to the only rugged mag meter with built in grooved end connections on the market.

The Field Mag 3000 features McCrometer’s proprietary fusion-bonded epoxy rather than a rubber or plastic liner, guaranteed against tearing and delamination for the lifetime of the meter. This durable, highly rugged flow instrument gives operators and technicians peace of mind that their metering investment will withstand harsh environments and a multitude of flow applications.

Grooved End Fittings vs. Flanged End

Ideal in water transfer, produced water and mining applications, grooved end connections provide greater ease and speed of installation, lower installation costs, and less down time during installation. The decrease in weight recognized by the removal of two sets of flanges and grooved end adapters is revolutionary and substantial. If you are connecting to flanged pipe instead of lay flat hose, ANSI #150 and ANSI #300 flanged connections are available as well.

These mag meters use a non-intrusive measurement element and are excellent in harsh environments requiring minimal maintenance with little to no drift over the life of the meter.

The Field Mag 3000 is designed for the following applications:

• • Well transfers
  • Pond transfers
  • Produced Water
  • Blending Applications
  • Water Treatment
  • Biocide skids
  • Dewatering
  • Slurries
  • Tailings
  • Effluent
  • Raw Water
  • Surface Water

The Field Mag 3000 utilizes our ProComm Go electronics which allows AC or DC power with battery backup or exclusive battery operation with pulse and 4-20mA outputs with an accuracy of +/- 1.0% of reading. Additionally, each unit comes pre-configured to connect to McCrometer’s SmartTrax telemetry system.

KEY BENEFITS AND FEATURES

Performance Advantages
The Field Mag 3000 requires only 1D upstream and 0D downstream of most flow disturbers, and still maintains up to ±1.0% accuracy across a large flow range. In addition, the meter has:

• • No obstructions to the flow
  • No moving parts to wear or break
  • Maintenance free
  • Bi-directional flow
  • Wide Flow range
  • Separate power and signal cables

The mag flow meter’s unique NSF-approved UltraLiner provides superior electrical insulation, as well as excellent protection against corrosion and abrasion.

Custom-Build Saves Time and Money
Only McCrometer offers a truly customized meter built to fit your application, reducing labor during installation, and ultimately saving you money. Specifically, we offer:

• • Special Lay Lengths
  • Grooved end or flanged end connections (ANSI)
  • Meter or Remote Mounted Converter
  • Custom Cable lengths up to 500 ft.
  • Quick Connection sensor fitting to make installations easier
